ao_monitoring

Active object sampling sensors and emitting validated measurement events.

Inherited Component

Monitoring_Manager

Inherited Requirements

Relationship Diagram

SW Unit Relations

Outgoing Relations

Relation	UML Type	Visibility	Target Unit	Description
SWR-017	dependency	private	hal_event_adapter	Monitoring consumes hardware-adapted sensor events.
SWR-021	association	public	ao_control	Monitoring publishes validated sensor snapshots to control for decision logic.
SWR-022	association	public	ao_safety	Monitoring publishes validated sensor snapshots to safety for protective evaluation.

Incoming Relations

Relation	UML Type	Visibility	Source Unit	Description
SWR-007	dependency	public	ao_runtime_supervisor	Runtime supervisor dispatches monitoring events.

Data Types

ao_monitoring_contextstruct

Internal runtime context for ao_monitoring.

Struct Members

Name	Type	Description
sample_period_ms	uint32_t	Sampling period.
last_sample_tick	uint32_t	Last sampling tick.
rpm_sampling_enabled	bool	RPM sampling enable state.
bounds_valid	bool	Last bounds validation result.

ao_monitoring_eventstruct

Event payload handled by ao_monitoring.

Struct Members

Name	Type	Description
signal_id	uint16_t	Monitoring event signal id.
temperature_c	int16_t	Measured temperature.
supply_voltage_mv	uint16_t	Measured supply voltage.
fan_rpm	uint16_t	Measured fan speed.

ao_monitoring_resultenum

Result code for ao_monitoring operations.

Enum Members

Name	Value	Description
OK	0	Monitoring snapshot published.
SENSOR_RANGE_ERROR	1	Sample out of bounds.
HAL_DATA_MISSING	2	Required HAL data unavailable.

Attributes

Attribute	Type	Visibility	Description
ctx	ao_monitoring_context	private	Runtime context for ao_monitoring state timing and error tracking.

Methods

dispatch

Return Type: ao_monitoring_result
Visibility: public
Description: Process one ao_monitoring event and update runtime outputs.

Parameters

Name	Type	Direction	Description
event	ao_monitoring_event	in	Process one ao_monitoring event and update runtime outputs.

init

Return Type: ao_monitoring_result
Visibility: public
Description: Initialize ao_monitoring runtime state and dependencies.

Dynamic Behaviour

Activity Diagrams

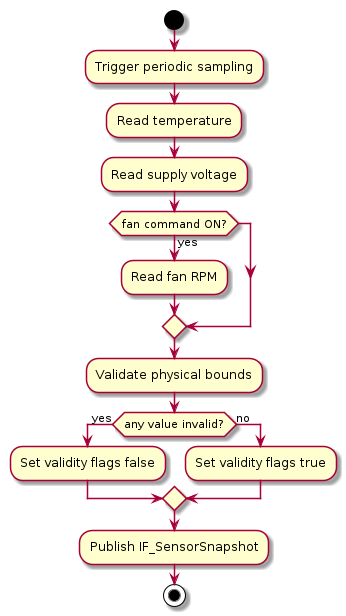

ao_monitoring_activity

This activity diagram defines ao_monitoring control flow for one acquisition cycle including trigger source conditional RPM acquisition physical range validation and IF SensorSnapshot publication with validity flags used by downstream control and safety logic.

Timing Diagrams

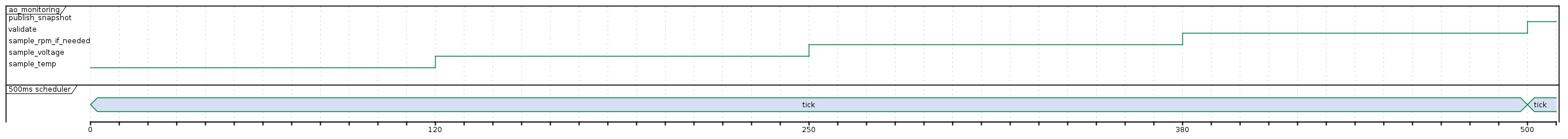

ao_monitoring_timing

This timing diagram decomposes the 500 ms monitoring cadence into sensor read stages validation and publish phase so requirement conformance can be checked against worst case execution and scheduling jitter.

Sequence Diagrams

SEQ-001_Runtime_Event_Orchestration

Primary runtime interoperability sequence showing scheduler tick propagation through dispatcher fan-out and deterministic active-object processing order across monitoring control safety diagnostics and communication units.

SEQ-005_Startup_To_Ready

Startup lifecycle sequence with explicit readiness gates before entering Run state.
